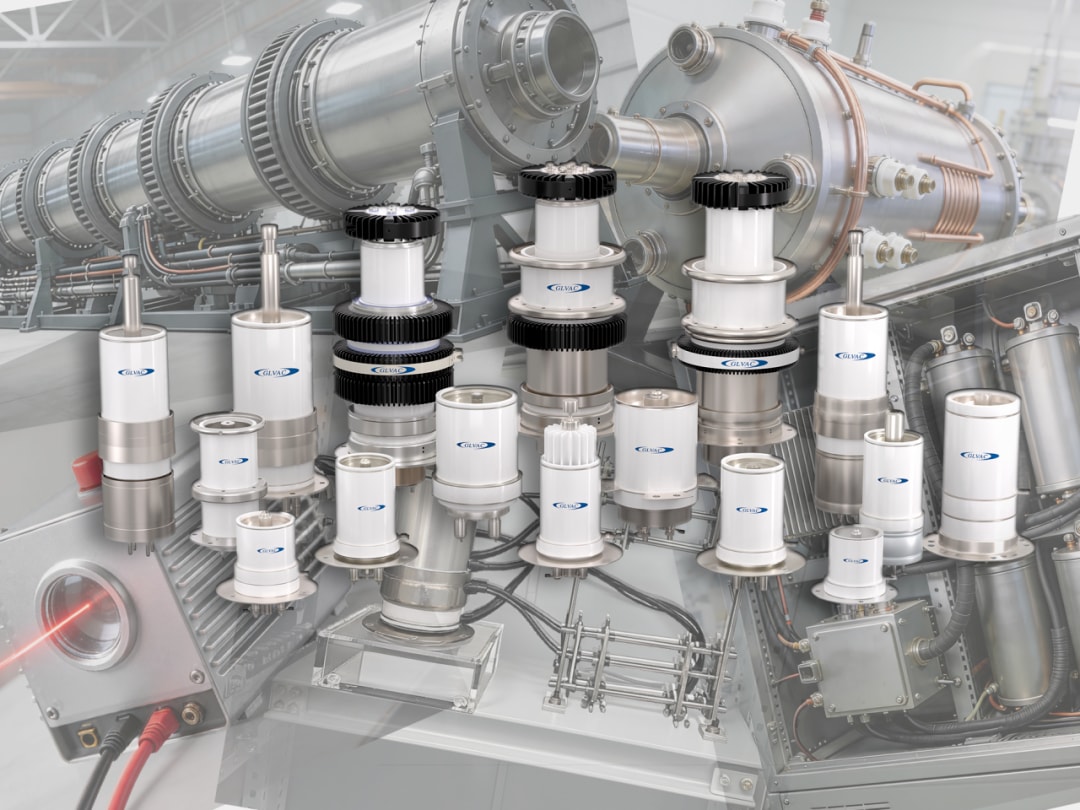

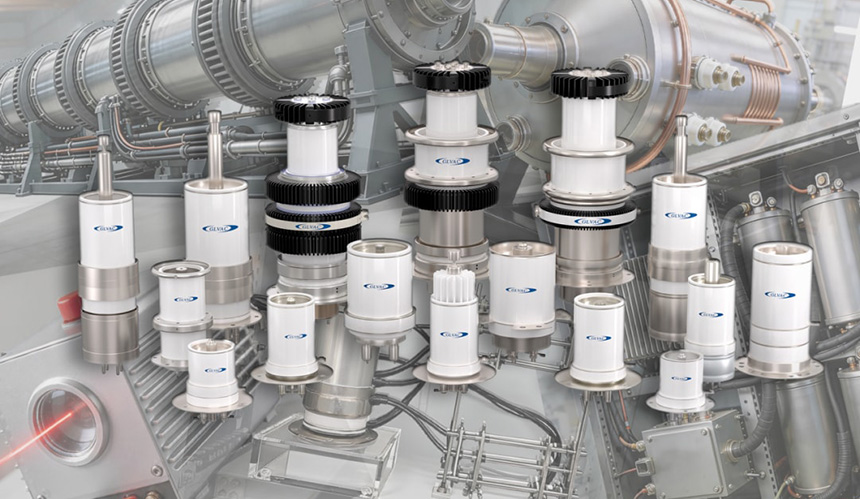

Hydrogen Thyratrons: The Core Switches for High-Peak Pulsed Energy

2026/06/15

Core Function
A hydrogen thyratron is a high-power gas discharge device that serves as a core, high-performance pulsed switch with a switching power reaching up to 10 GW. Its primary function is to efficiently control electrical energy, instantly converting the stored energy of energy-storage components into high-power pulses. As a critical core component in high-power, high-performance pulse circuits for medical and large-scale scientific facilities, its response speed and jitter time are both at the nanosecond level. These metrics directly determine the energy loss and stability of the pulsed discharge circuit.


Science and Technology

Precision Grid Electrode Structure: GLVAC hydrogen thyratrons mainly consist of three electrodes: a cathode, an anode, and a grid. After the anode is charged, the electrons emitted by the cathode collide with and ionize the gas inside the tube under the influence of the grid voltage, thereby controlling the conduction of the thyratron. This works in coordination with the charging circuit to precisely control the switching frequency of the pulse circuit. A built-in hydrogen generator is housed within the tube. By adjusting the heating voltage of the hydrogen generator, the internal hydrogen gas pressure can be precisely controlled, thus tuning the switching characteristics of the hydrogen (or deuterium) thyratron.

Key Regulation Mechanism: When the concentration of hydrogen (or deuterium) inside the tube is too low, the device requires a higher trigger voltage to conduct, which also increases its internal conduction losses. Since the amplitude of the trigger pulse is usually fixed, optimization is primarily achieved by adjusting the hydrogen generator voltage to ensure the device operates at its optimal parameters.

Core Advantages of Hydrogen Thyratrons

High Power Handling: Meets the demands of high-power, high-performance pulse circuits, with switching power exceeding 10 GW.

High-Efficiency Conversion: Features an extremely short switching time and ultra-low energy loss.

Rapid and Stable Ignition: Ensures a fast, drift-free pulse leading edge, precise timing, and stable power output.

Long Lifespan: Reduces the maintenance frequency and operational costs of medical equipment.

Low Trigger Voltage: Enhances system safety and reliability while reducing energy consumption.

Application Areas

Industrial Linear Accelerators: Non-destructive testing, electron beam irradiation.

Medical Linear Accelerators: Radiation therapy for cancer.

High-Energy Physics: Fundamental physics and materials science research.

Excimer Lasers: Dermatology treatments, ophthalmic laser surgeries, micro-machining.

Inter-turn Testers & Crowbar Protection: Motor withstand voltage testing, fast overvoltage protection systems.

Radar Systems: Driving microwave sources, guiding artillery and missile fire control.

Controlled Nuclear Fusion: Generating strong magnetic confinement for plasma collisions to induce fusion reactions.

Although a hydrogen thyratron is merely a vacuum device within a pulsed power system, it is the critical core component for high-voltage, high-current, high-peak-power pulse output. With the continuous advancement of materials science and manufacturing processes, Guoli Electronics will continue to provide robust technical support for humanity's exploration of the microscopic world and the conquering of scientific challenges.
