TD-12/2000-26.3
-
Power system
-
Metallurgy
-
Coal mining
-
Petroleum
-
Chemical
-
Electric railway
TD-12/2000-26.3

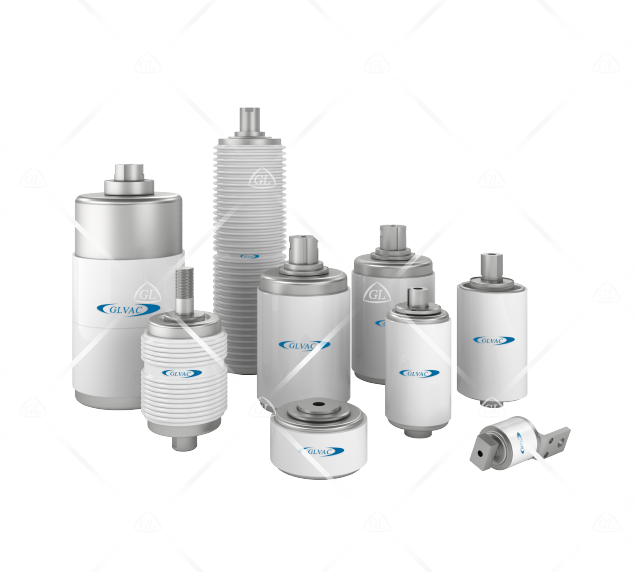

The product adopts a single-step sealing and evacuation process and a ceramic casing, utilizing a longitudinal magnetic field contact structure. It features high breaking capacity, excellent insulation performance, strong arc-extinguishing capability, long service life, and compact size. Additionally, it offers the advantages of simple maintenance,
-
Energy conservation
-
Material saving
-
Fireproof
-
Explosion-proof
-
Small size
-
Long lifespan
-
Low maintenance costs
-
Reliable operation
-
Pollution-free
Product Parameter
-
GLVAC modelTD-12/2000-26.3
-
Rated Current （A）2000
-
Rated Voltage (kV)12
-
Rated Breaking Current(kA)26.3
-
Rated Breaking Current Times30
-
Rated Short-time(1min) Power-Frequency Withshand Voltage(kV)48
-
Rated Lightning Impulse Withstand Voltage(kV)85
Get Professional Solutions
We are looking forward to engaging with you to explore more solutions for electric vacuum devices.
