TJ-3.6/630B

  • Power system

  • Metallurgy

  • Coal mining

  • Petroleum

  • Chemical

  • Electric railway


TJ-3.6/630B

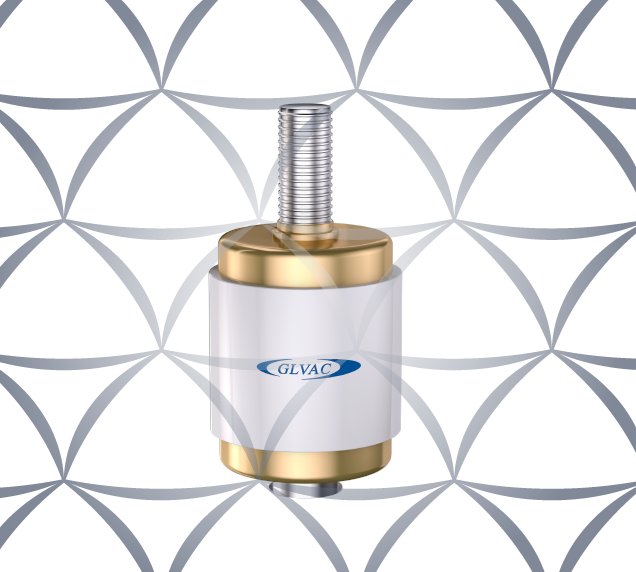

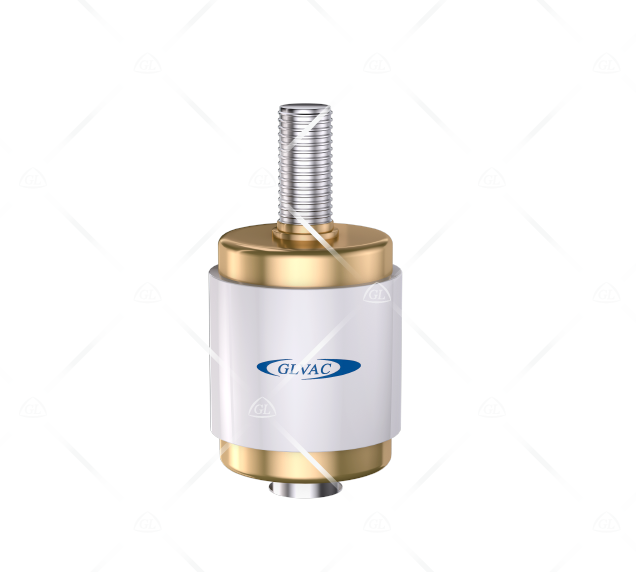

The product adopts a single-step sealing and evacuation process and a ceramic casing, utilizing a longitudinal magnetic field contact structure. It features high breaking capacity, excellent insulation performance, strong arc-extinguishing capability, long service life, and compact size. Additionally, it offers the advantages of simple maintenance,

  • Energy conservation

  • Material saving

  • Fireproof

  • Explosion-proof

  • Small size

  • Long lifespan

  • Low maintenance costs

  • Reliable operation

  • Pollution-free

Product Parameter

  • GLVAC model
    TJ-3.6/630B
  • Rated  Current (A)
    630
  • Rated Voltage (kV)
    3.6
  • Rated Short-Current(kA/Times)
    6.3/100
  • Rated Breaking Capacity(kA/Times)
    5/25
  • Limited Breaking Capacity(kA/Times)
    6.3/3
  • Rated Short-time(1min) Power-Frequency Withshand Voltage(kV)
    18
