TD-12/630-25A

  • Power system

  • Metallurgy

  • Coal mining

  • Petroleum

  • Chemical

  • Electric railway

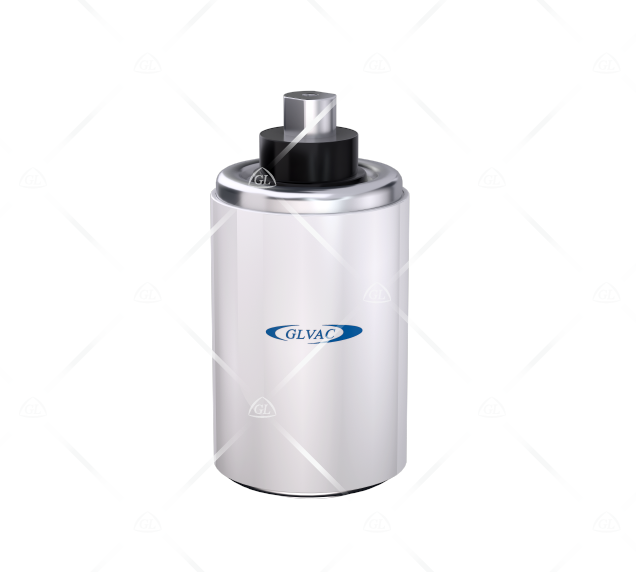

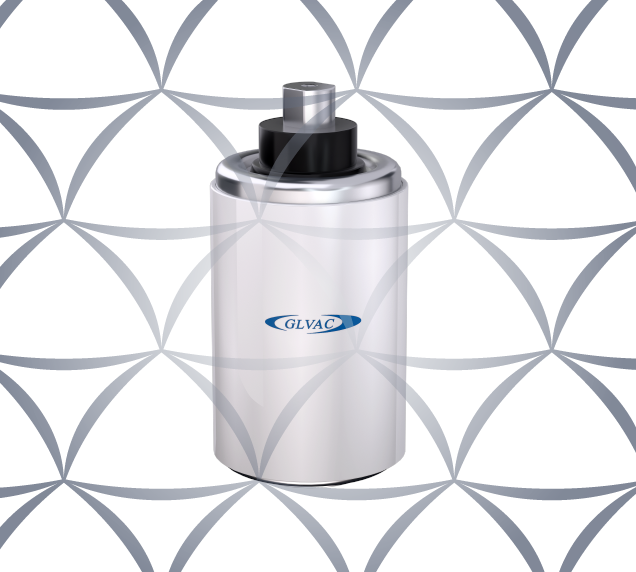

TD-12/630-25A

The product adopts a single-step sealing and evacuation process and a ceramic casing, utilizing a longitudinal magnetic field contact structure. It features high breaking capacity, excellent insulation performance, strong arc-extinguishing capability, long service life, and compact size. Additionally, it offers the advantages of simple maintenance,

  • Energy conservation

  • Material saving

  • Fireproof

  • Explosion-proof

  • Small size

  • Long lifespan

  • Low maintenance costs

  • Reliable operation

  • Pollution-free

Product Parameter

  • GLVAC model
    TD-12/630-25A
  • Rated  Current （A）
    630
  • Rated Voltage (kV)
    12
  • Rated Breaking Current(kA)
    25
  • Rated Breaking Current Times
    30
  • Rated Short-time(1min) Power-Frequency Withshand Voltage(kV)
    42
  • Rated Lightning Impulse Withstand Voltage(kV)
    75
