GLH2

  • Short wave communication

  • Communication satellites

  • Radar

  • Submarine cable

  • RF applications

  • High voltage testing instruments

  • Semiconductor equipments

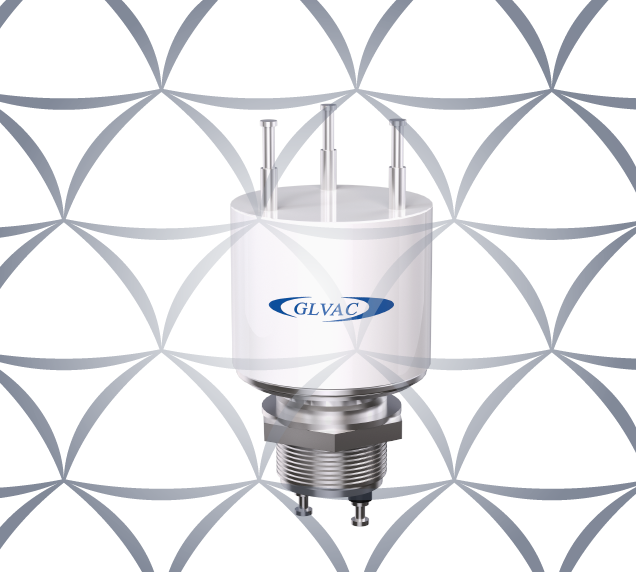

GLH2

Easy to install with a nut for secure mounting. Replaceable coils allow for versatile product functionality. The GLH2 non-load switch features low and stable contact resistance. It supports high current loads with continuous DC up to 25A and is compact in size.

  • Handling high power

  • Working under harsh conditions such as high voltage and high current

  • High reliability

  • Long lifespan

Product Parameter

  • GLVAC model
    GLH2
  • Rated Working Voltage(kV)
    8
  • Load Switch
    No
  • Rated Open Voltage(kV Peak) DC or 60Hz
    8
  • Max CONT. Current(A)
    25
  • Contact Form
    SPDT
  • Contact Capacitance(pF)
    -/-
  • Max Contact Resist(0hms)
    0.01
  • Max Open Time(ms)
    6
  • Max Rel. Time(ms)
    6
  • Shock 11ms 1/2 Sine(gpeak)
    50
  • Weight Nom(g)
    40
